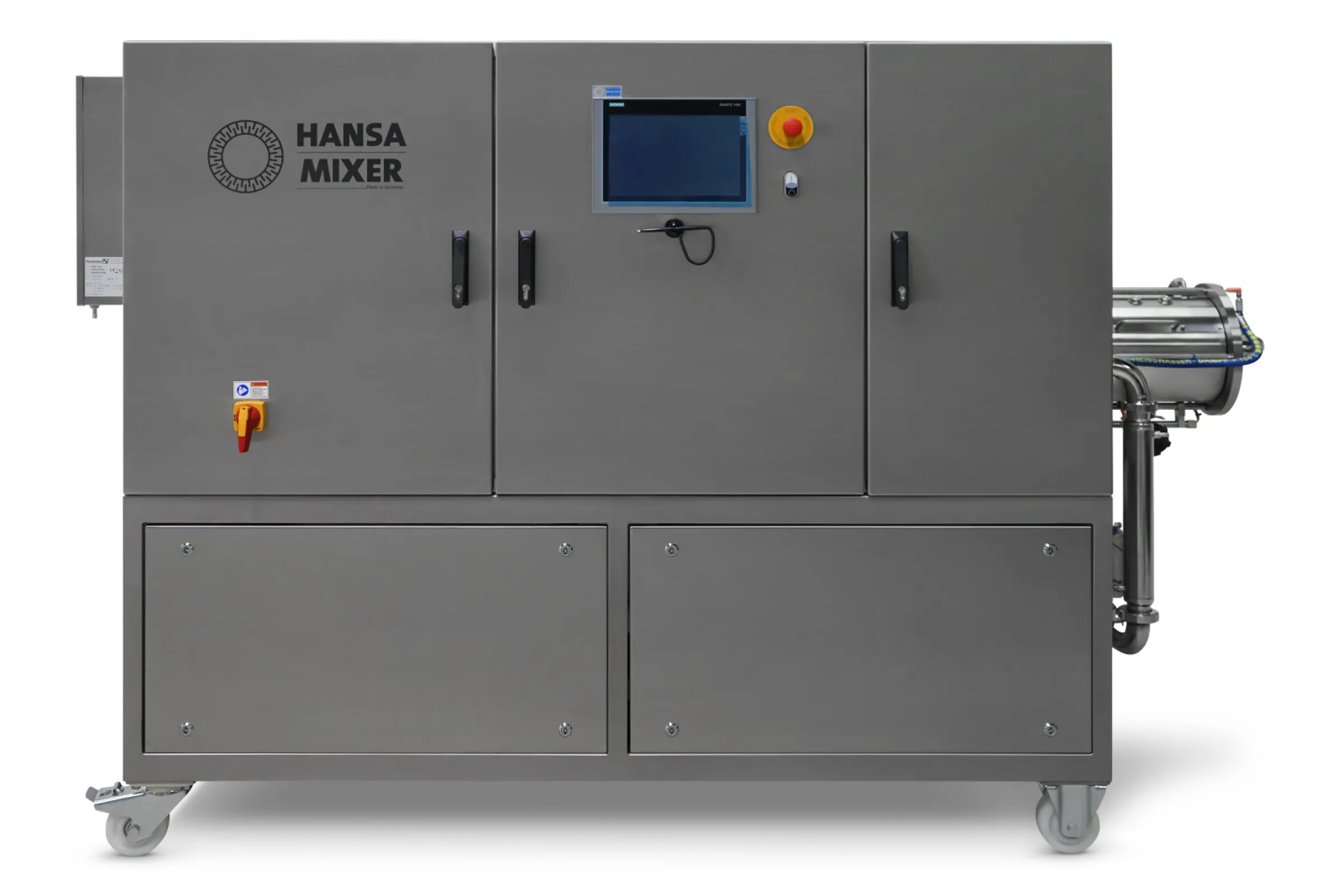

COMPACT-MIX

Large production machine with up to three pumps built into the frame. Continuous aeration, whipping and mixing of pumpable media in the confectionery, baking or general foodstuffs industry.

• Dynamic stainless steel mixing head available in three configurations: 570, 990 or 1,410 pins

• Sterilisable construction of shaft seals, mixing heads fabricated from a single piece or laser-welded

• Continuous electrically controlled RPM-adjustment (frequency converter) includes digital display

• Exact dosing of flavourings or other ingredients possible using additional dosing pumps

• Automatic systems, CIP-cleaning, temperature control devices and double-walled pipelines for effective production precisely conforming to your recipe

• Reliable control of all production-processes using SPS-control system

Dimensions (L,W,H): 2,000 x 810 x 1,700 mm
Output range: from 50 – 400 kg/h  to 300 – 2,000 kg/h
