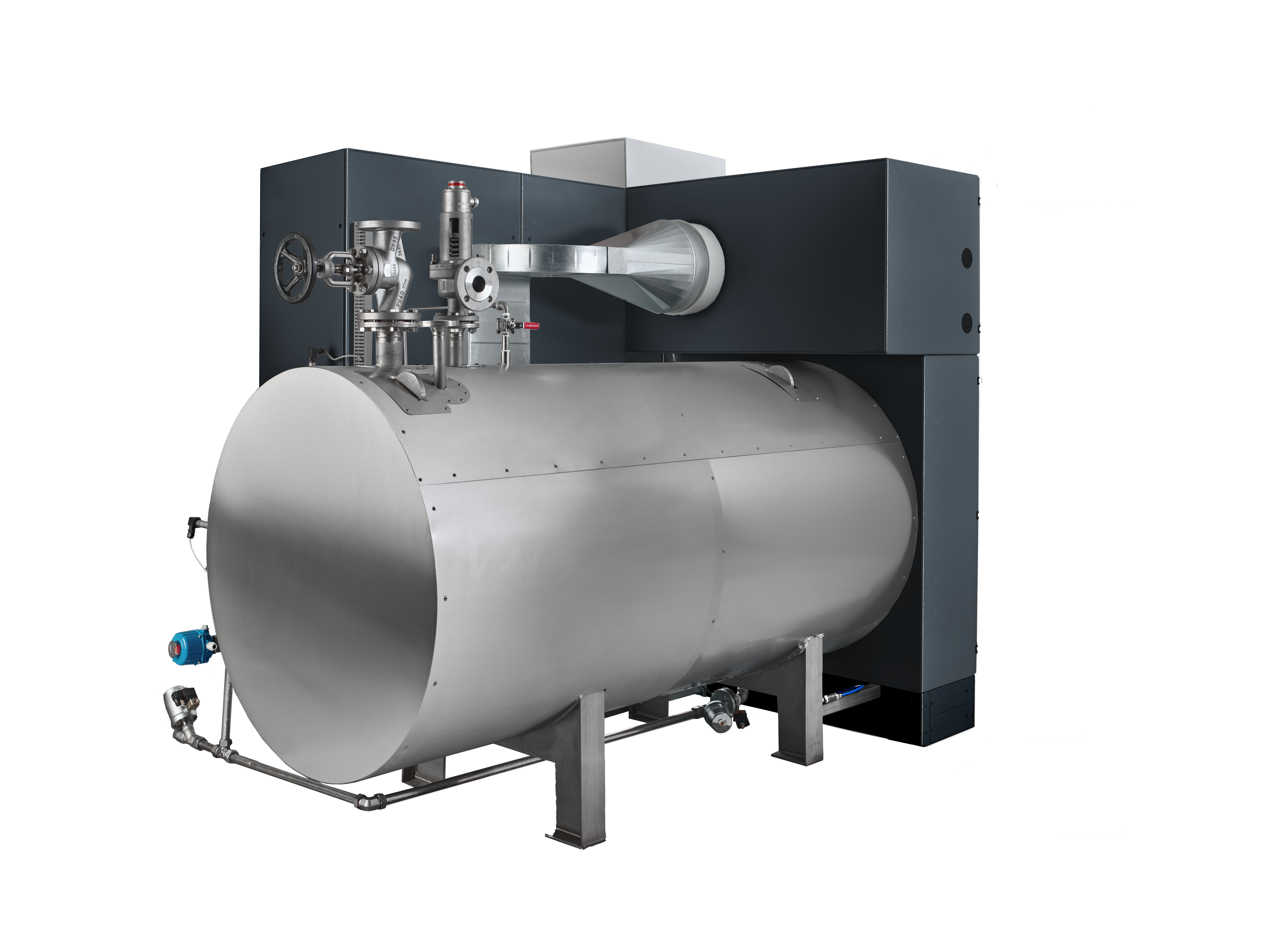

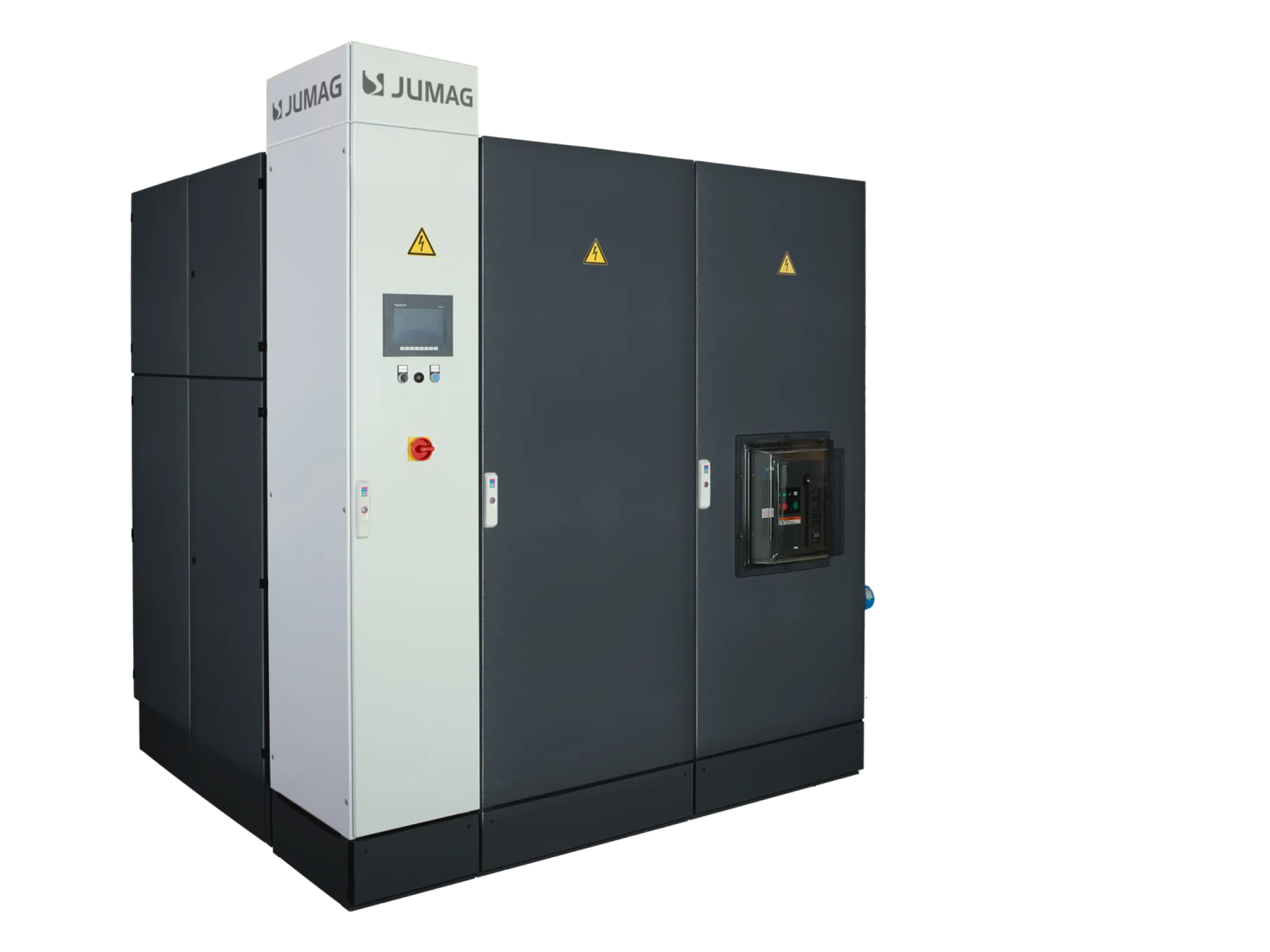

JUMAG EDI 960 – High-Capacity Electric Steam Boiler

The JUMAG EDI 960 is a fully electric steam boiler designed for industrial applications with high steam demand. With a heating capacity of 960 kW, it delivers approximately 1,280 kg of steam per hour.

Technical Specifications:

• Electrical power: 960 kW

• Steam output: approx. 1,280 kg/h

• Operating pressure: up to 11.5 bar

• Boiler category: PED IV

• Water content: approx. 1,400 litres

• Heating system: 12 stainless steel heating rods (80 kW each) with thyristor control

• Dimensions (L×W×H): approx. 2,620 × 1,910 × 2,150 mm

• Weight: approx. 4,500 kg

Key Features:

• Modular heating system: continued operation possible even if one heating rod fails

• Thyristor-controlled load regulation ensures smooth operation without power surges

• High-quality steam: integrated drop separator ensures dry steam

• Optional integrated heat recovery and feedwater preheating

• Large water surface area prevents foaming and enables high steam quality

• Full automation with touch-screen operation and remote monitoring capability

• Low maintenance due to robust design and industrial-grade components

Applications:
Ideal for clean and emission-free steam in industries such as pharmaceuticals, food and beverage, cosmetics, healthcare, and laboratories. Also suitable for integration with renewable energy sources.

Advantages:

• High steam output with compact footprint

• Emission-free and energy-efficient operation

• No flue gas system required

• Long service life and reliable performance

• Suitable for 24/7 industrial use
