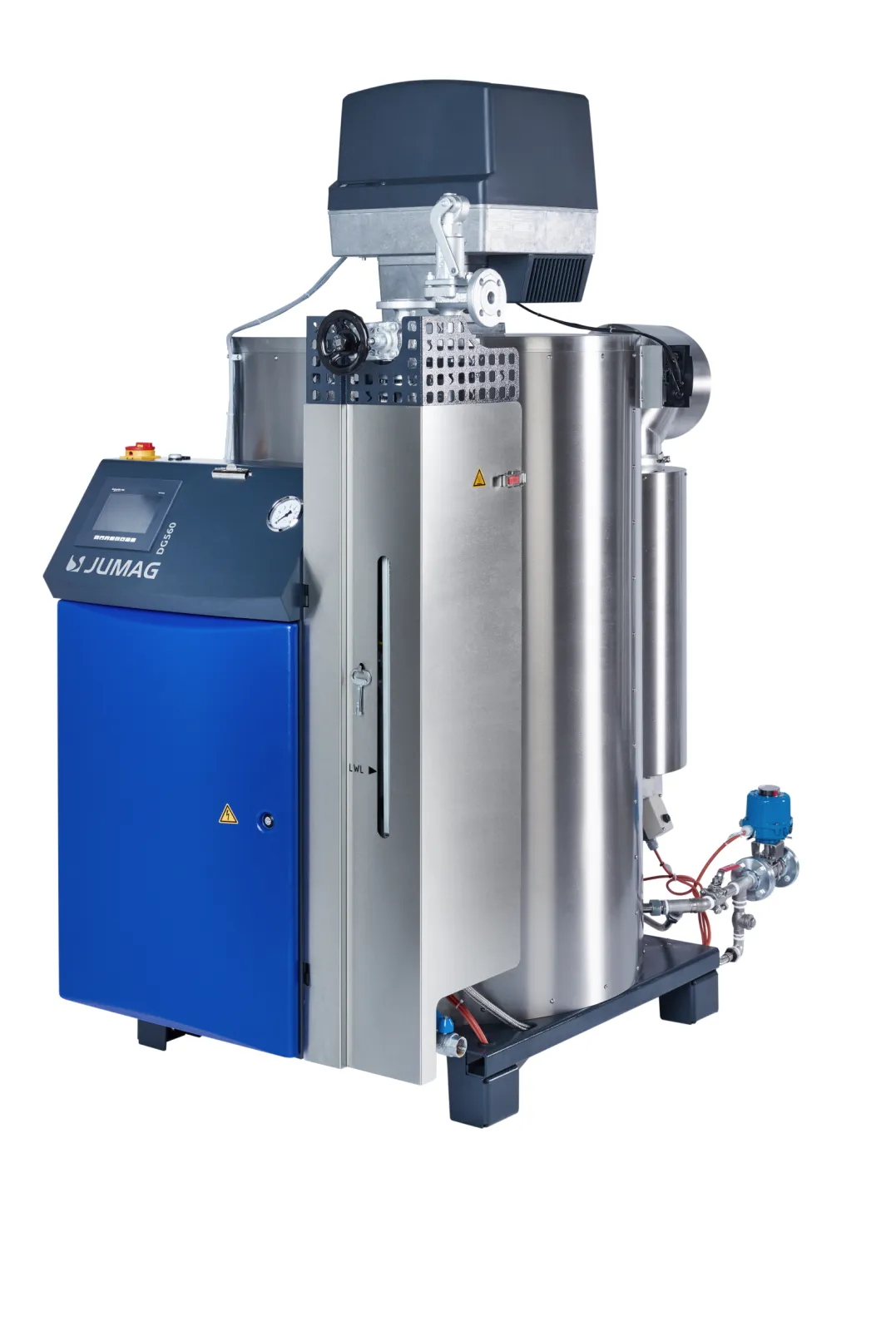

JUMAG DG560 – High-Performance Steam Boiler

The JUMAG DG560 is a gas or oil-fired steam boiler with a steam output of up to 560 kg/h. It combines the advantages of large shell boilers with the compact size and rapid readiness of quick steam generators.

Key Features:

• Steam output: up to 560 kg/h

• Fuel options: Natural gas, LPG, light oil

• Efficiency: Up to 97% (over 100% possible with heat recovery systems)

• Control system: Fully automatic with touch display and remote monitoring capability

• Design pressure: Up to 11 bar (custom pressures available)

• Compact footprint: Ideal for limited space or containerised use

• No continuous supervision required in many regions due to certified safety system

Advantages:

• Low energy consumption and fast start-up times

• Very low maintenance thanks to patented pump circulation system (no water level electrode)

• Easy integration into modular and multiple-boiler systems

• Long service life with stainless steel components and industrial-standard burner

Applications:

The DG560 is suitable for industries such as food production, pharma, textiles, automotive, and cleaning – wherever medium steam output with high reliability is required.
